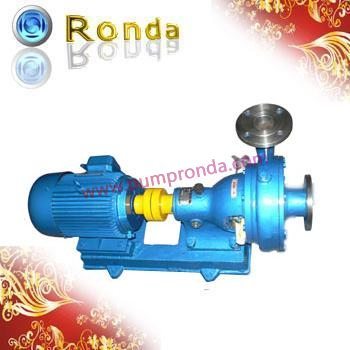

Horizontal centrifugal slurry pump PW

FOB Price: US $1200.01 - 999999 set

group name: SEWAGE/SLURRY PUMP

Min Order: 1 set

brand name: RONDA

model: PW

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 26 Dec 2024 13:40:35 GMT

contact supplier

Paramtents

working principle centrifuigal
installing method submersible-sewage

Packging & Delivery

Min Order1 set

Briefing

Horizontal centrifugal slurry pump PW is with strong ability for slurry with high viscosity and density.

Detailed

Horizontal centrifugal slurry pump PW

PW sewage pump is a horizontal sewage pump. It’s for low gravity sewage. It is easy to maintenance because of it’s simple structure.

Working Principle: Centrifugal
Main applications: Sewage
Driver: Electric motor
Power Specs: 380/415 V 3phase; 50hz/60hz
Max. permissible fluid temperature: 80°C
Type of connection: Flange
Installation position: Horizontal
Casing/Inner parts material: Cast iron /Cast iron
Shaft seal type: Mechanical seal
Free passage: 20% of caliber
Maximum gravity: 1.1
Maximum drive rating: 75kW (100hp)
Maximum caliber: 8 inch (200mm)
Maximum dischrage head: 50m
Flow rate range: 43-700 m³/h (720-11664 l/m)

Part of performance table:

Model Capacity Q Head Speed Power(kw) Efficiency (NPSH)r
(m3/h) (L/s) (m) (r/min) Axial Motor (%) (m)
50PWF-65 10 2.75 18 1440 2.35 4 20.5 5
14.5 4 16 2.47 25.5
19 5.25 14.5 2.58 29
80PWF-100 42 11.7 14 1440 3.5 5.5 45.5 4.5
56 15.5 13.5 4.1 50
72 20 12.5 4.5 54.5
100PWF-125 80 22.2 14 1440 5.5 7.5 55 4

Do you mean:oil pump,Diaphragm Pump ,Chemical Pump,Screw Pump,Vacuum Pump,Centrifugal Pump

Working Principle:	Centrifugal
Main applications:	Sewage
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz
Max. permissible fluid temperature:	80°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron /Cast iron
Shaft seal type:	Mechanical seal
Free passage:	20% of caliber
Maximum gravity:	1.1
Maximum drive rating:	75kW (100hp)
Maximum caliber:	8 inch (200mm)
Maximum dischrage head:	50m
Flow rate range:	43-700 m³/h (720-11664 l/m)

Model	Capacity Q		Head	Speed	Power(kw)		Efficiency	(NPSH)r
Model	(m3/h)	(L/s)	(m)	(r/min)	Axial	Motor	(%)	(m)
50PWF-65	10	2.75	18	1440	2.35	4	20.5	5
	14.5	4	16		2.47		25.5
	19	5.25	14.5		2.58		29
80PWF-100	42	11.7	14	1440	3.5	5.5	45.5	4.5
	56	15.5	13.5		4.1		50
	72	20	12.5		4.5		54.5
100PWF-125	80	22.2	14	1440	5.5	7.5	55	4
