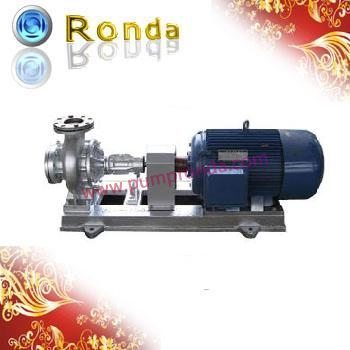

Centrifugal hot oil pump RY

RY thermal oil pump, also called hot oil pump, is an ideal pump for thermal-conductive oil, or other hot oil. This pump is centrifugal model, temperature reaches 370°C. It is an fan cooling pump.

Working Principle: Centrifugal impeller
Main applications: Oil
Driver: Electric motor, diesel motor.
Power Specs: 380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature: 370°C
Type of connection: Flange
Installation position: Horizontal
Casing/Inner parts material: Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type: Shaft seal ring; Mechanical seal; Packing Seal
Free passage: 1 mm
Maximum viscosity: 5X104CST
Maximum drive rating: 132 kW (177hp)
Maximum caliber: 6 inch (150mm)
Maximum head: 85m
Flow rate range: 4.5-400 m3/h (75-6667l/m)

Model Capacity Head Speed Axial Power Input power Efficiency NPSHr
m3/h m r/min KW KW % m
26-20-100 4.5 15 2900/3450 0.45 0.75 40 0.8
50-32-150 8 22 1 1.5 42 1.6
50-32-160 10 25 1.5 2.2 42 1.8
50-50-150 24 18 3.1 4 46 1.8
50-50-170 12.5 32 3.2 4 45 2.5
65-40-160 12.5 25 2.5 3 45 2.2
65-50-150 50 16 4.2 5.5 52 2.8
65-50-180 32 32 4.5 5.5 52 2.7
65-50-170 40 25 4.5 5.5 52 2.7
65-40-190 18 40 4.5 5.5 52 2.8
65-40-200 25 50 6.7 7.5 63 3.1
80-50-180 40 40 6.7 7.5 63 3.1
80-50-170 60 20 6.7 7.5 63 3.1
100-65-190 60 38 9.2 11 68 3.9
100-65-200 80 40 12.5 15 70 3.5
100-65-210 90 45 15.7 18.5 70 3.6
100-65-220 58 50 12.5 15 68 3.5
100-65-230 58 60 15.5 18.5 62 3.5
100-65-230 100 55 19.5 22 70 3.6
100-65-240 100 70 25.5 30 69.8 4.1
100-65-257 100 80 32.5 37 67 3.6
125-100-190 155 30 20 22 72 3.6
125-100-220 160 45 25.5 37 75.2 3.6
125-80-250 160 60 35.5 45 74.2 5
125-100-245 300 55 61 75 74 7.5
125-100-250 200 60 42.8 55 76.4 6
125-100-260 300 70 75.3 90 78.2 8
125-100-26 5 200 80 59 75 74 6
125-100-257 260 70 64.3 75 77.1 6.8
125-100-270 300 70 75.3 90 78.2 8
125-100-280 260 85 75 90 76 6.8
150-125-250 350 60 75.2 90 76 8.6
150-125-240 400 50 72 90 76 9.8
150-125-270 340 76 89.5 110 78.6 8.5
150-125-250 400 60 88 110 74 9.8
150-125-280 400 78 106 132 80.6 9.8
150-125-280 370 85 106 132 80 9.7
250-200-500 500 80 1450/1750 136 160 76 5
300-250-500 600 80 158 185 70 9
250-200-550 700 80 190 220 81 14
200-200-400 400 50 74 90 81 6.8
200-200 -400A 350 35 61 75 80 6
300-300-300 720 30 75 90 82 6.7
300-300 -300A 600 22 69 90 80 6.5
350-300-300 800 20 63 75 82 6.2
350-300-400 800 50 190 185 83 6.2
400-350-300 1080 20 92 110 78 6
400-350-400 1080 30 112 132 76 6
500-400-300 1400 20 145 160 80 6
